Batterie al litio slimline

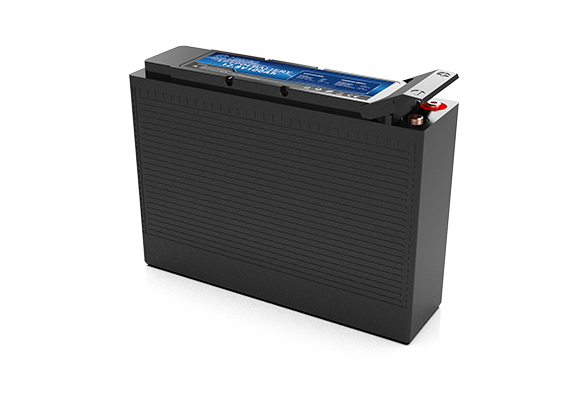

HC395 Serie-12V100/135Ah, 24V65Ah Slimline Batteria al litio LiFePO4
Certificazioni
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- HC395-12100
- HC395-12135 | HC395-2465
- Specifiche elettriche
- Nominal Voltage | 12.8V | 12.8V | 24V
- Capacità nominale
- 100Ah | 135Ah | 65Ah
- Parallel Connection
- Max. 6units | Max. 6units | Max.6units
- Series Connection
- Max. 4units | Max. 4units | Max.2units
- BMS
- 4S100A | 4S150A | 8S80A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles@100%DODand 6000times @80%DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V
- Standard Current
- 20A | 27A | 13A
- Fast Charge Current
- 50A | 67A | 32A
- Discharge Specifications
- Standard Current | 20A | 27A | 13A
- Max. Continuous Current
- 100A | 135A | 65A
- Peak Current
- 500A(300ms) | 600A(300ms) | 400A(300ms)
- Cut-off Voltage
- 10V | 10V | 20V
- Specifiche meccaniche

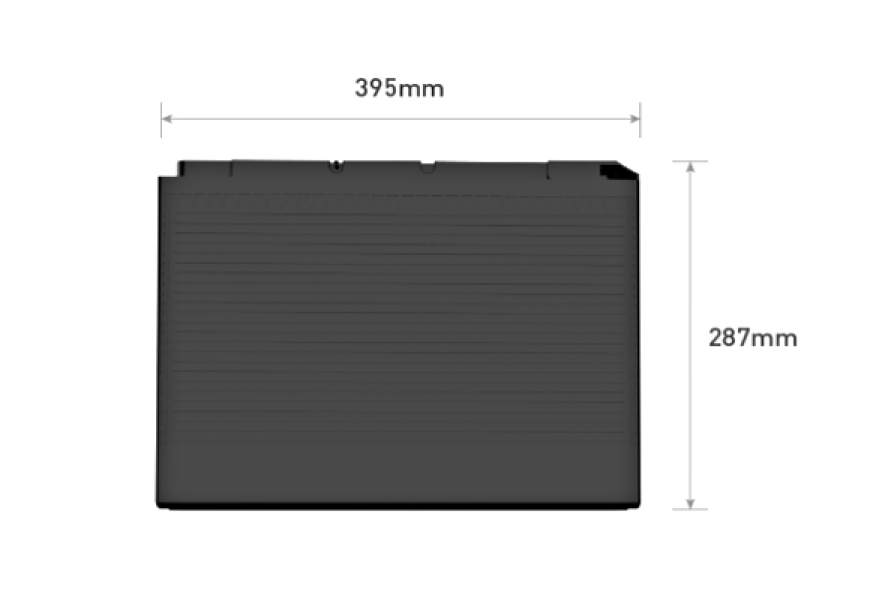

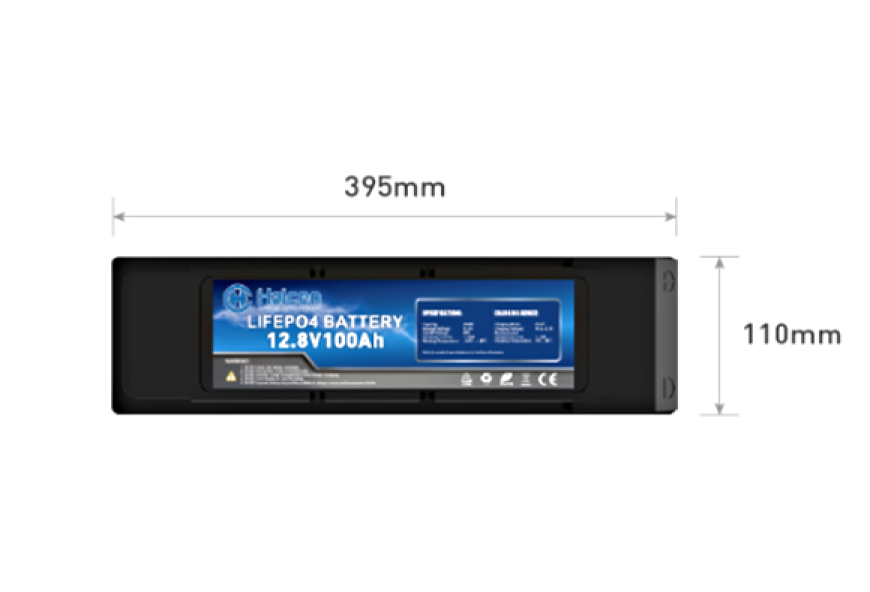

- Dimensions (mm) | 95x110x287mm
- Peso approx.
- 11.5 | 13 | 12.5
- Terminal Type
- M8
- Case Color / Material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell Holder
- Yes
- Specifiche di temperatura
- Charge Temp | 0°C to 55°C
- Temperatura di scarica
- -20°C to 60°C
- Temperatura di stoccaggio
- -5°C to 45°C
Dimensioni e peso in unità metriche (mm / kg).
