Deep Cycle Lithium Batteries-SLA Replace

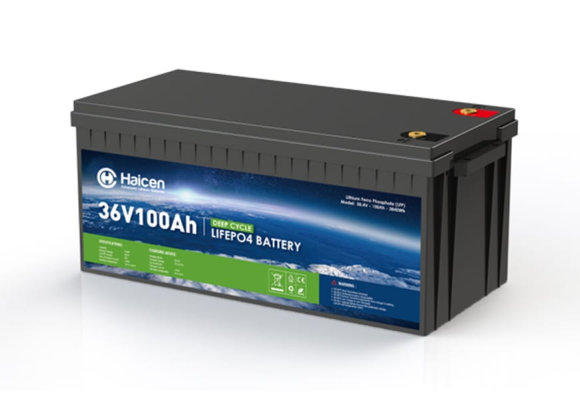

36V100Ah(BCI Group 4D) Deep Cycle Lithium Battery
- ElectricalSpecifications
- Nominal Voltage | 38.4V
- Nominal Capacity
- 100Ah
- Parallel Connection
- Max. 4units
- Serial Connection
- NO
- BMS
- 12S100A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- Bluetooth, Heating, Display, RS485 or CANBus
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 43.2±0.6V
- Standard Current
- 20A
- Fast Current
- 50A
- DischargeSpecifications
- Standard Current | 20A
- Max. Con. Current
- 100A
- Peak Current
- 500A(300ms)
- Cut-off Voltage
- 30V
- MechanicalSpecifications
- Dimensions (mm) | 521x238x218mm (G4D)
- Approx Weight(KG]
- 27
- Terminal Type
- M8
- Case Color/material
- Black Plastic Case (ABS)
- IP Rating
- IP65
- Cell Type
- 3.2V100Ah Prismatic Cell
- TemperatureSpecifications
- Charge Temp | 0°C to 55°C （32°F to 131°F）
- Discharge Temp
- -20°C to 60°C （-4°F to 140°F）
- Storage Temp
- -5°C to 45°C （23°F to 113°F）
