Deep Cycle Lithium Batteries-SLA Replace

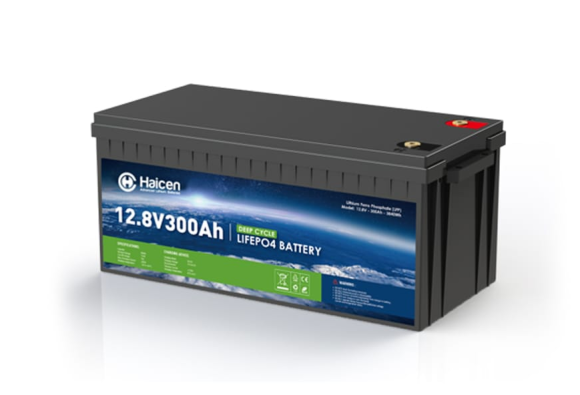

12.8V300Ah(BCI Group 4D) Deep Cycle Lithium Battery
- ElectricalSpecifications
- Nominal Voltage | 12.8V
- Nominal Capacity
- 300Ah
- Parallel Connection
- Max. 6units
- Serial Connection
- Max. 4units
- BMS
- 4S200A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- Bluetooth, Heating, Display, RS485 or CANBus
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 14.4±0.2V
- Standard Current
- 60A
- Fast Current
- 150A
- DischargeSpecifications
- Standard Current | 60A
- Max. Con. Current
- 200A
- Peak Current
- 800A(300ms)
- Cut-off Voltage
- 10V
- MechanicalSpecifications
- Dimensions (mm) | 521x238x218mm (G4D)
- Approx Weight(KG]
- 28
- Terminal Type
- M8
- Case Color/material
- Black Plastic Case (ABS)
- IP Rating
- IP65
- Cell Type
- 3.2V100Ah Prismatic Cell
- TemperatureSpecifications
- Charge Temp | 0°C to 55°C （32°F to 131°F）
- Discharge Temp
- -20°C to 60°C （-4°F to 140°F）
- Storage Temp
- -5°C to 45°C （23°F to 113°F）
