Deep Cycle Lithium Batteries-SLA Replace

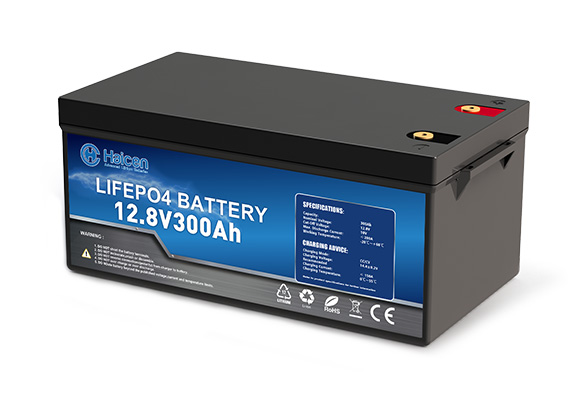

HCG8D(BCI Group 8D) Series-12V300/350/380Ah, 24V150/190Ah, 48V105Ah LiFePO4 Lithium Batteries
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- ElectricalSpecifications
- Nominal Voltage | 12.8V | 12.8V | 12.8V | 24V | 24V | 48V
- Nominal Capacity
- 300Ah | 350Ah | 380Ah | 150Ah | 190Ah | 105Ah
- Parallel Connection
- Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units
- Serial Connection
- Max. 4units | Max. 4units | Max. 4units | Max. 2units | Max. 2units | No
- BMS
- 4S200A | 4S200A | 4S200A | 8S150A | 8S150A | 16S100A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V | 28.8±0.4V | 57.6±0.8V
- Standard Current
- 60A | 70A | 76A | 30A | 38A | 21A
- Fast Current
- 150A | 175A | 190A | 75A | 95A | 52A
- DischargeSpecifications
- Standard Current | 60A | 70A | 76A | 30A | 38A | 21A
- Max. Con. Current
- 200A | 200A | 200A | 150A | 150A | 100A
- Peak Current
- 800A(300ms) | 800A(300ms) | 800A(300ms) | 600A(300ms) | 600A(300ms) | 500A(300ms)
- Cut-off Voltage
- 10V | 10V | 10V | 20V | 20V | 40V
- MechanicalSpecifications

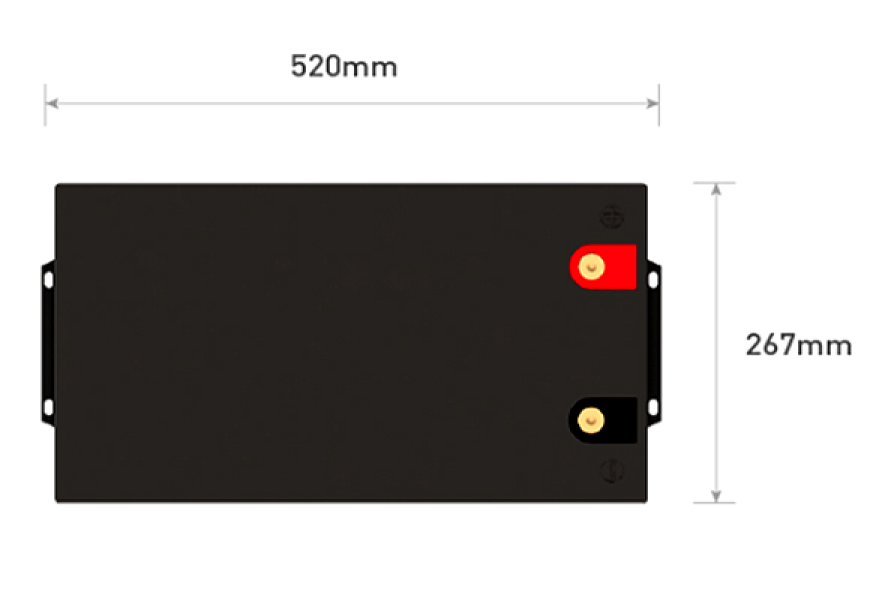

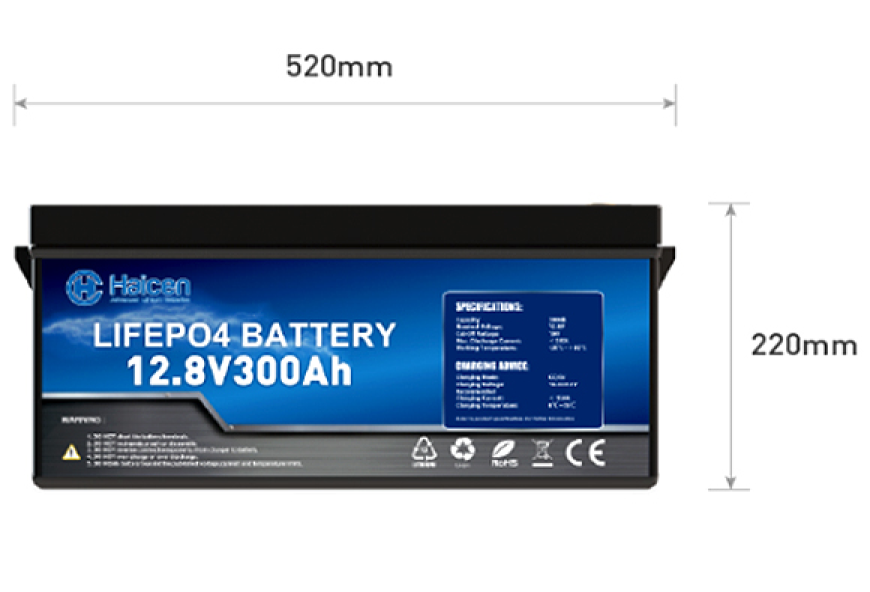

- Dimensions (mm) | 521x267x220mm(Group 8D)
- Approx Weight(KG]
- 33 | 34.5 | 34.5 | 33.5 | 34.5 | 38
- Terminal Type
- M8
- Case Color/material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell holder
- Yes
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃ (32℉to131℉)
- Discharge Temp
- -20℃ to 60℃ (-4℉ to 140℉)
- Storage Temp
- -5℃ to 45℃ (23℉ to 113℉)
