Deep Cycle Lithium Batteries-SLA Replace

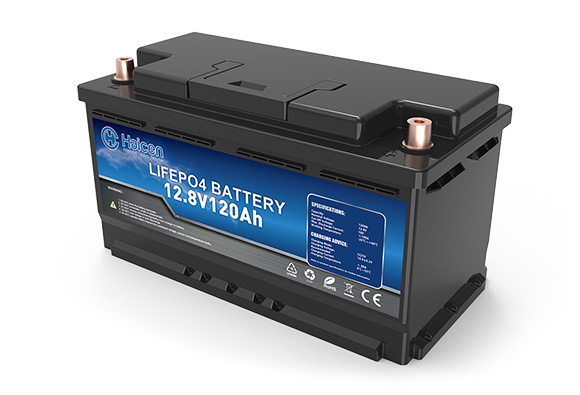

HC352(352 Case) Series-12V120/150Ah, 24V75Ah LiFePO4 Lithium Batteries
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- HC352-12120
- HC352-12150 | HC352-2475
- ElectricalSpecifications
- Nominal Voltage | 12.8V | 12.8V | 24V
- Nominal Capacity
- 120Ah | 150Ah | 75Ah
- Parallel Connection
- Max.6units | Max.6units | Max.6units
- Serial Connection
- Max.4units | Max.4units | Max.2units
- BMS
- 4S150A | 4S150A | 8S80A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles@100%DODand 6000times @80%DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V
- Standard Current
- 24A | 30A | 15A
- Fast Current
- 60A | 75A | 37A
- DischargeSpecifications
- Standard Current | 24A | 30A | 15A
- Max. Con. Current
- 120A | 150A | 75A
- Peak Current
- 600A(300ms) | 600A(300ms) | 400A(300ms)
- Cut-off Voltage
- 10V | 10V | 20V
- MechanicalSpecifications

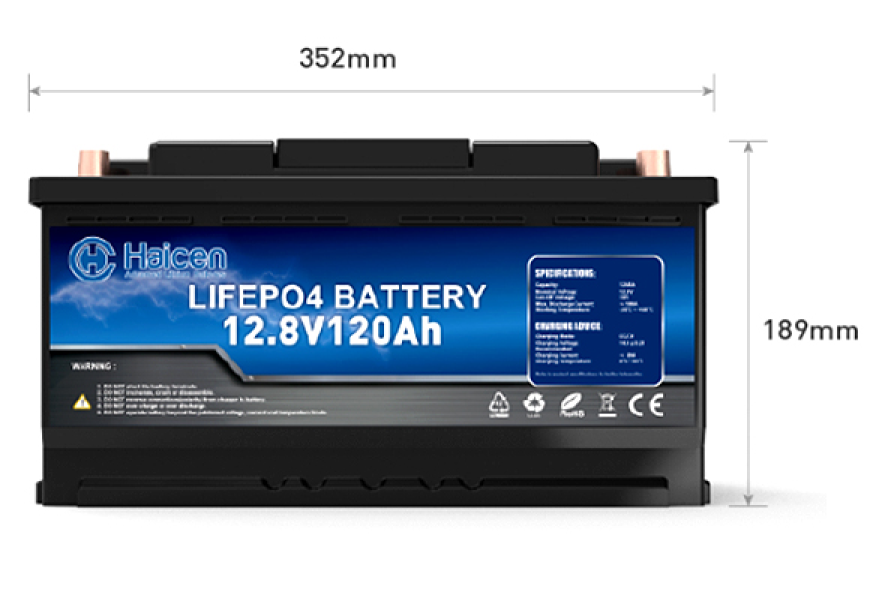

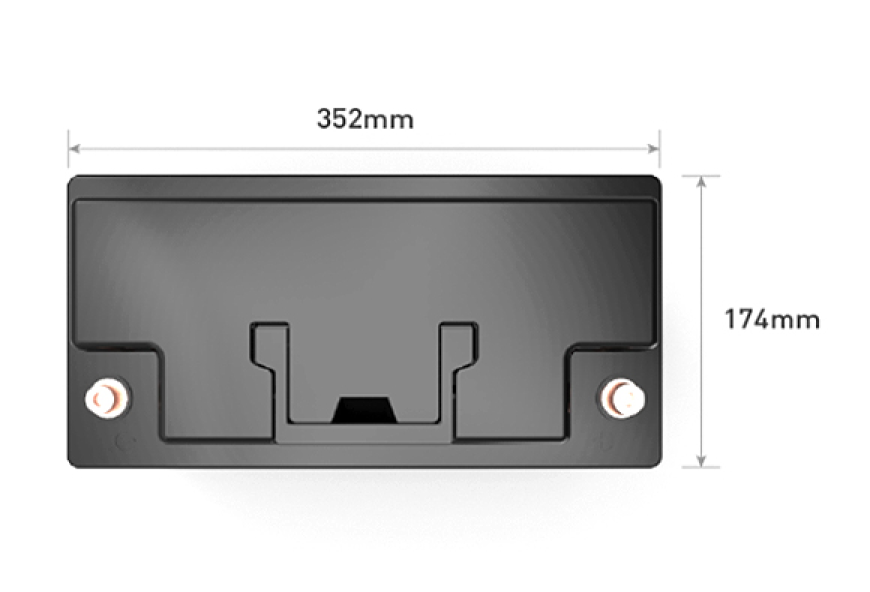

- Dimensions (mm) | 352x174x189mm
- Approx Weight(KG]
- 13 | 14 | 14
- Terminal Type
- M8
- Case Color/material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell holder
- Yes
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃ (32℉to131℉)
- Discharge Temp
- -20℃ to 60℃ (-4℉ to 140℉)
- Storage Temp
- -5℃ to 45℃ (23℉ to 113℉)
