12V Prismatic Lithium Batteries

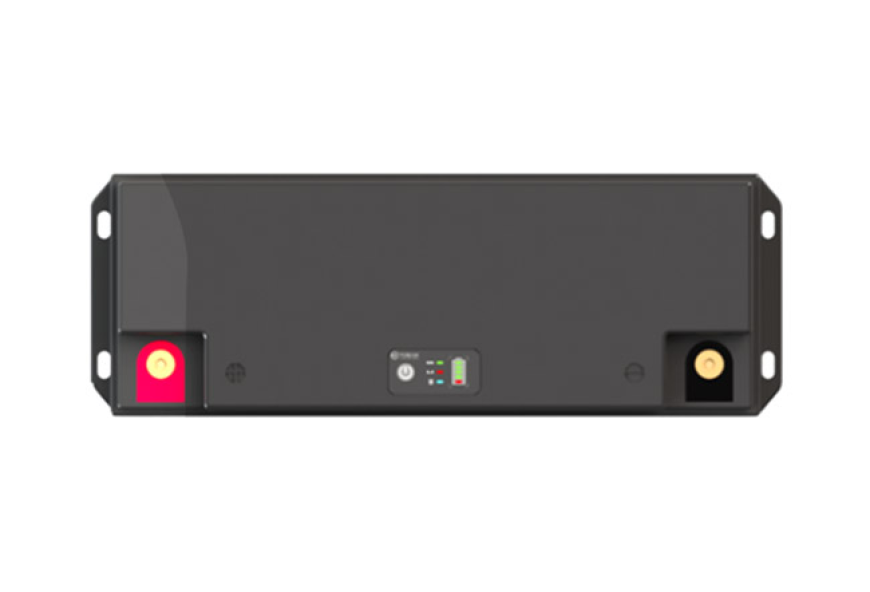

HCG49S(BCI Group 49) Series-12V212Ah, 24V106Ah LiFePO4 Lithium Battery
Certifications
- UL1973
- UL9540
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- IEC62919
- ElectricalSpecifications
- Nominal Voltage | 12.8V | 12.8V | 24V | 24V
- Nominal Capacity
- 212Ah | 212Ah | 106Ah | 106Ah
- Parallel Connection
- Max. 4units | Max. 4units | Max. 4units | Max. 4units
- Serial Connection
- Max. 4units | Max. 4units | Max. 2units | Max. 2units
- BMS
- 4S150A | 4S150A | 8S100A | 8S100A
- Bluetooth
- No | Android/IOS | No | Android/IOS
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V | 28.8±0.4V
- Standard Current
- 42A | 42A | 21A | 21A
- Fast Current
- 106A | 106A | 53A | 53A
- DischargeSpecifications
- Standard Current | 42A | 42A | 21A | 21A
- Max. Con. Current
- 150A | 150A | 100A | 100A
- Peak Current
- 600A(300ms) | 800A(300ms) | 500A(300ms) | 700A(300ms)
- Cut-off Voltage
- 10V | 10V | 20V | 20V
- MechanicalSpecifications

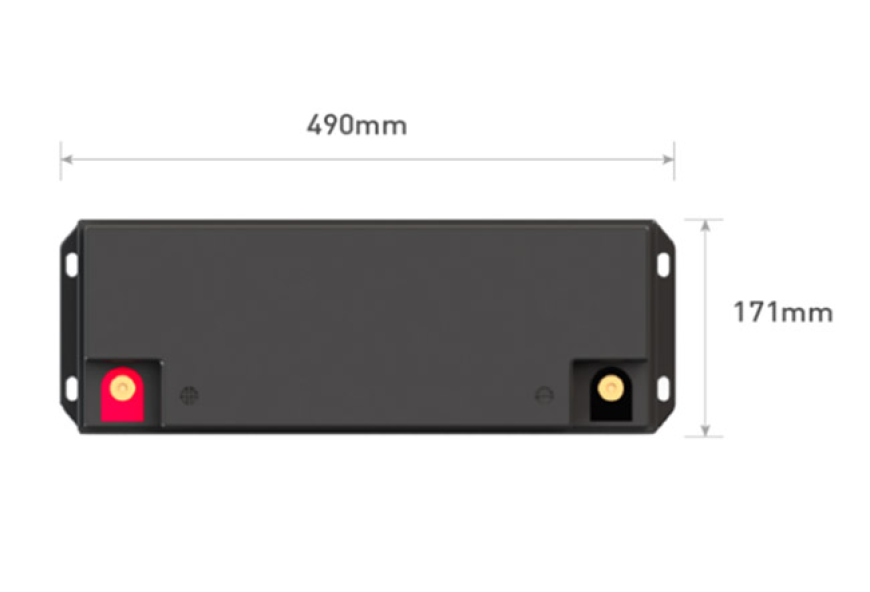

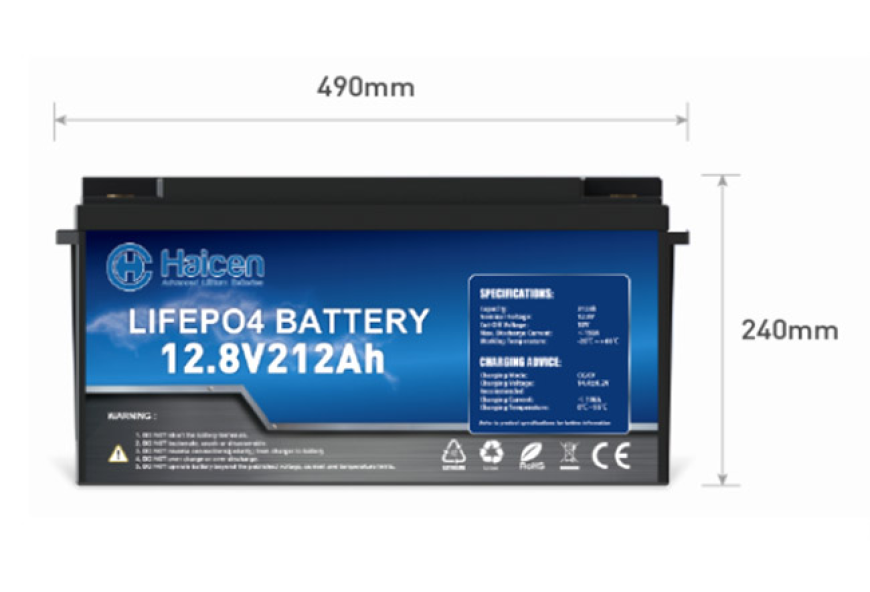

- Dimensions (mm) | 490x171x240mm
- Approx Weight(KG)
- 18.5 | 18.5 | 18.5 | 18.5
- Terminal Type
- M8
- Case Color/material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- 3.2V106Ah prismatic cell
- Cell holder
- Yes
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃ (32℉ to 131℉)
- Discharge Temp
- -20℃ to 60℃ (-4℉ to 140℉)
- Storage Temp
- -5℃ to 45℃ (23℉ to 113℉)
