Golf Cart Lithium Batteries

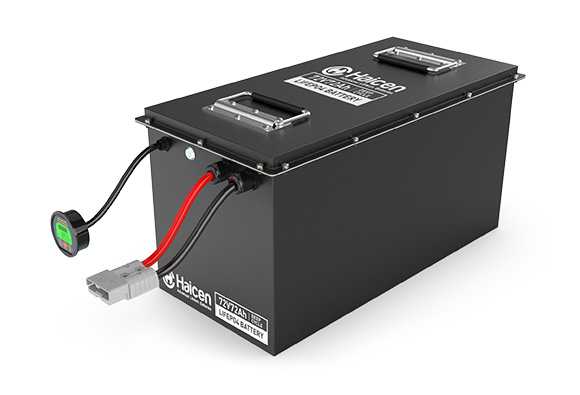

HC7272 Series-72V72Ah LiFePO4 Lithium Battery
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- ElectricalSpecifications
- Nominal Voltage | 76.8V
- Nominal Capacity
- 72Ah
- Parallel Connection
- Max. 4units
- Serial Connection
- No
- BMS
- 24S150A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Optional Function
- Rs485 ,CAN; LCD; Active balancing module
- Cycle Life
- 3000times Cycles@100%DODand 6000times @80%DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 86.4V
- Standard Current
- 14.4A
- Fast Current
- 36A
- DischargeSpecifications
- Standard Current | 14.4A
- Max. Con. Current
- 150A
- Peak Current
- 300A(200ms)
- Cut-off Voltage
- 60V
- MechanicalSpecifications

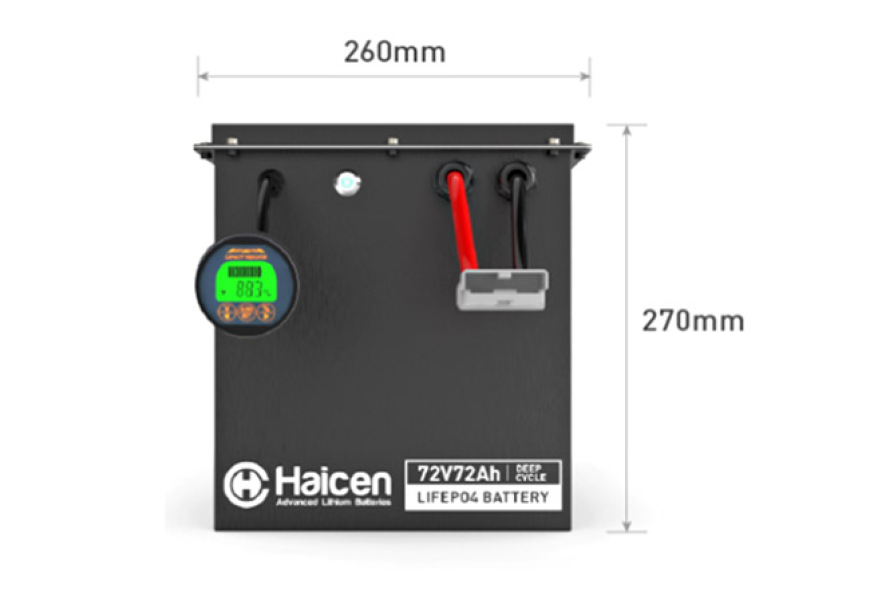

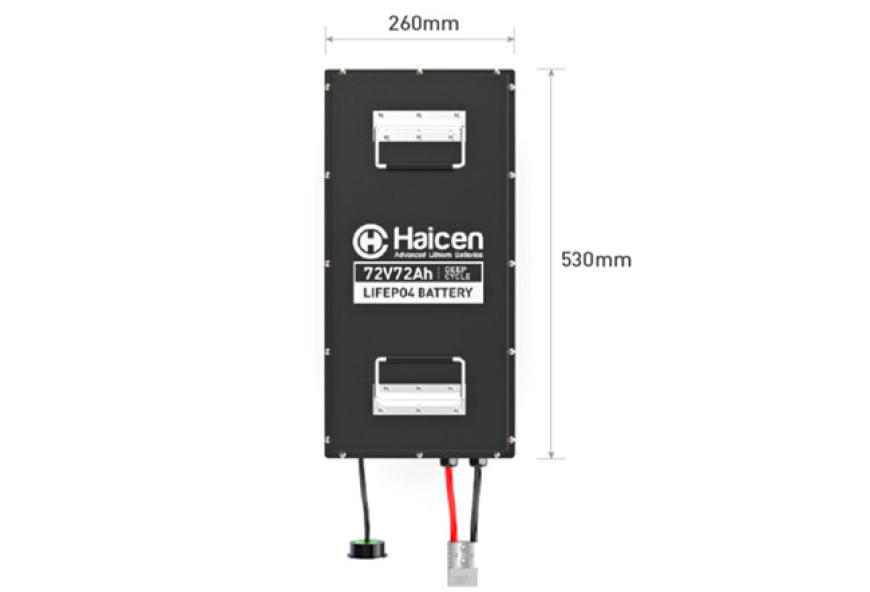

- Dimensions (mm) | 530x260x270mm
- Approx Weight(KG]
- 50
- Terminal Type
- M8
- Case Color/material
- Black Metal case
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell holder
- Yes
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃(32℉to131℉)
- Discharge Temp
- -20℃ to 60℃(-4℉ to 140℉)
- Storage Temp
- -20℃ to 45℃(-4℉ to 113℉)
