48V ESS Module

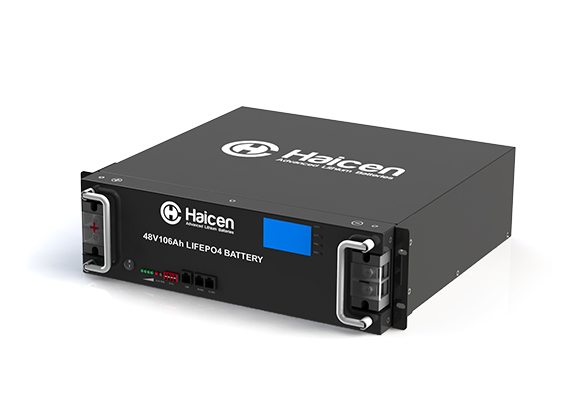

HC48106-3U Series-48V106Ah LiFePO4 Lithium Battery
Certifications
- UL1642
- UL1973
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- ElectricalSpecifications
- Nominal Voltage | 51.2V
- Nominal Capacity
- 106Ah
- Parallel Connection
- Max. 16units
- Serial Connection
- No
- BMS
- 16S100A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- 2xRs485 and 1xCAN, LCD
- Cycle Life
- 3000times Cycles@100%DODand 6000times @80%DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 57.6±0.8V
- Standard Current
- 20A
- Fast Current
- 50A
- Max. Con. Current
- 100A
- Peak Current
- 250A(2s)
- Cut-off Voltage
- 40V
- MechanicalSpecifications

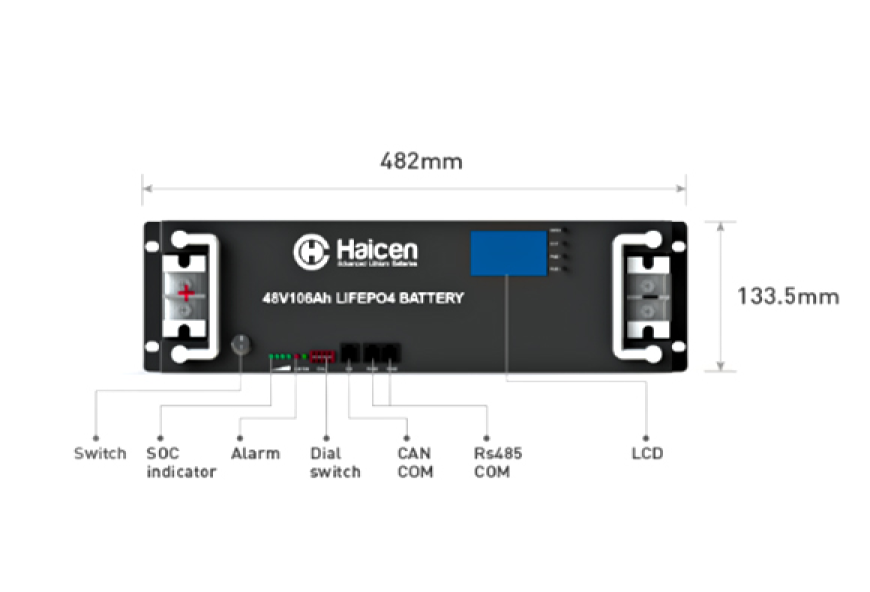

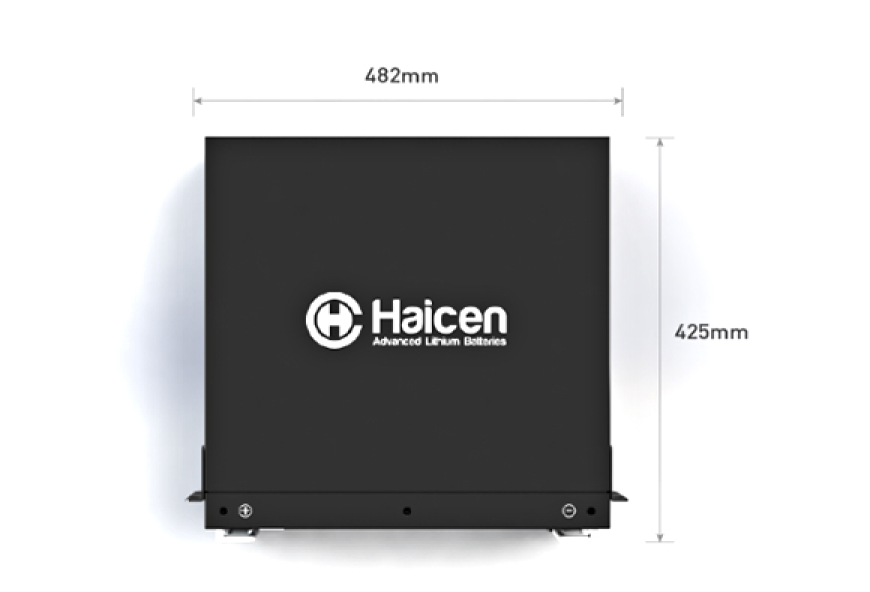

- Dimensions (mm) | 482x425x133.5mm(3U standard size)
- Approx Weight(KG]
- 40
- Terminal Type
- 4*M6
- Case Color/material
- Black Metal Case
- IP Rating
- IP56
- Cell Type
- 3.2V106Ah prismatic cell
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃ (32℉to131℉)
- Discharge Temp
- -20℃ to 60℃ (-4℉ to 140℉)
- Storage Temp
- -20℃ to 45℃ (-4℉ to 113℉)
