Trolling Motor Lithium Batteries

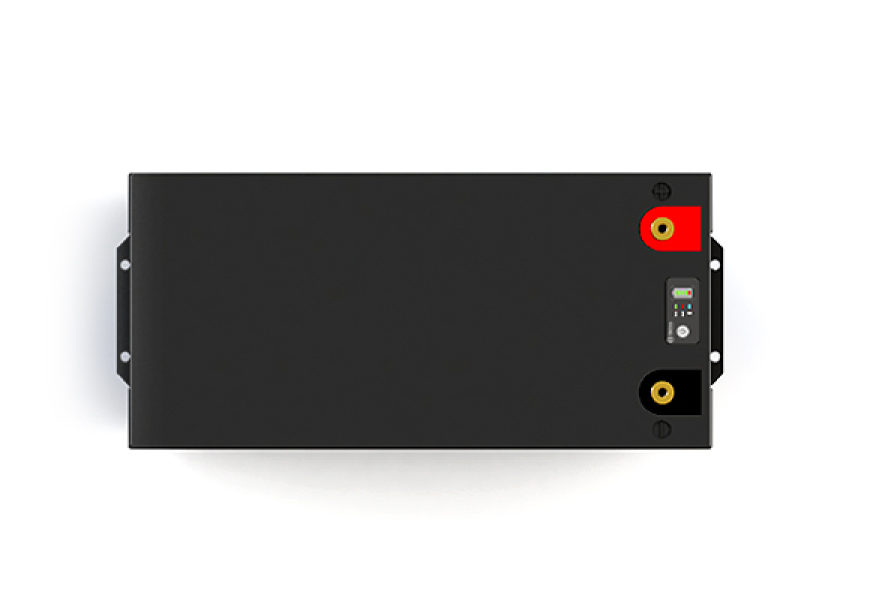

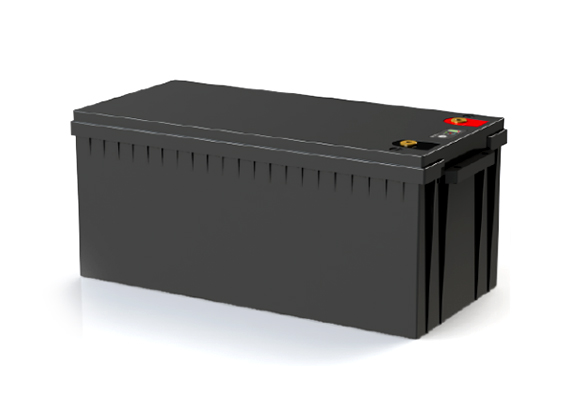

HCG4DS(BCI Group 4D) Series-36V100Ah Smart LiFePO4 Lithium Battery
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- ElectricalSpecifications
- Nominal Voltage | 36V | 36V
- Nominal Capacity
- 100Ah | 120Ah
- Parallel Connection
- Max. 6units | Max.6units
- Serial Connection
- NO | NO
- BMS
- 12S100A | 12S100A
- Bluetooth
- Android/IOS | Android/IOS
- Heat
- No | No
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 43.2±0.6V | 43.2±0.6V
- Standard Current
- 20A | 24A
- Fast Current
- 50A | 60A
- DischargeSpecifications
- Standard Current | 20A | 24A
- Max. Con. Current
- 100A | 100A
- Peak Current
- 700A(300ms) | 700A(300ms)
- Cut-off Voltage
- 30V | 30V
- MechanicalSpecifications

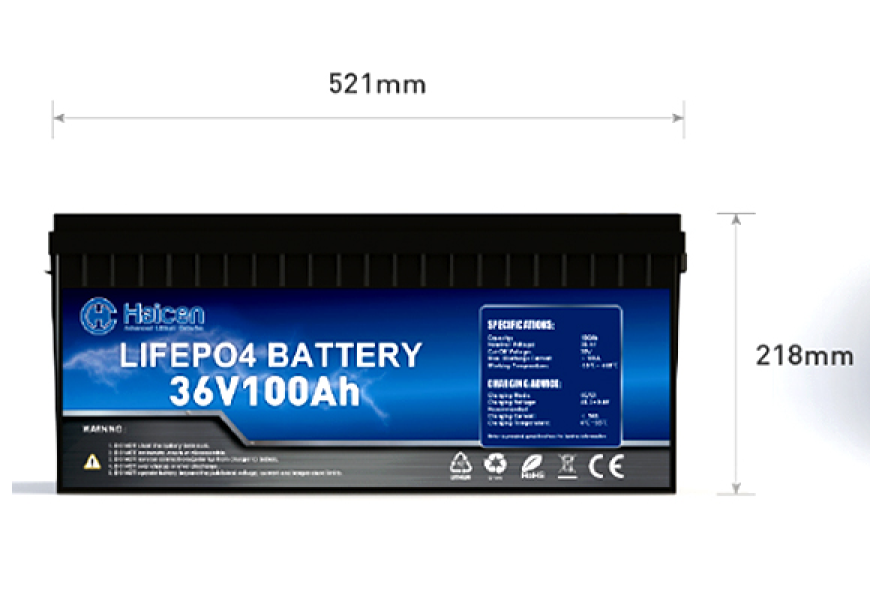

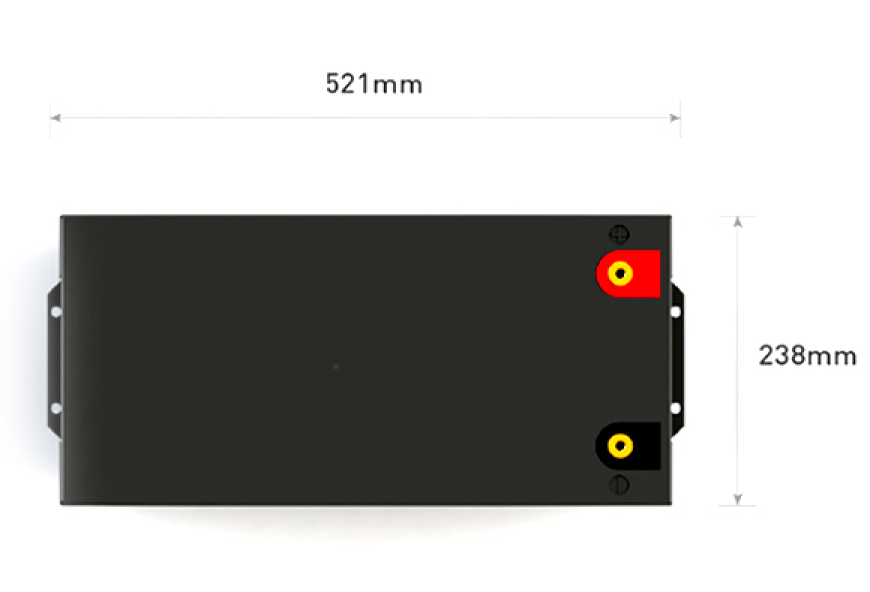

- Dimensions (mm) | 521 x 238 x218mm(G4D)
- Approx Weight(KG]
- 31 | 33
- Terminal Type
- M8
- Case Color/material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell holder
- Yes
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃ (32℉ to 131℉)
- Discharge Temp
- -20℃ to 60℃ (-4℉ to 140℉)
- Storage Temp
- -5℃ to 45℃ (23℉ to 113℉)
