Sodium-ion Batteries

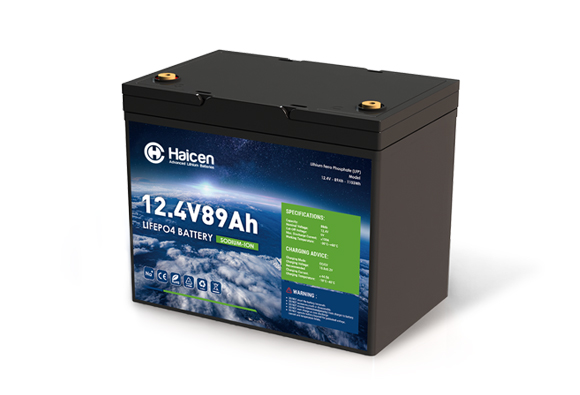

12.4V89Ah Sodium-ion Battery
- ElectricalSpecifications
- Nominal Voltage | 12.4V
- Nominal Capacity
- 89Ah
- Parallel Connection
- Max. 6units
- Serial Connection
- Max. 4units
- BMS
- 4S100A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- Bluetooth, Heating, Display, RS485 or CANBus
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 15.8±0.2V
- Standard Current
- 17.8A
- Fast Current
- 44.5A
- DischargeSpecifications
- Standard Current | 17.8A
- Max. Con. Current
- 100A
- Peak Current
- 400A(300ms)
- Cut-off Voltage
- 6V
- MechanicalSpecifications
- Dimensions (mm) | 260×170×208mm (Group 24)
- Approx Weight(KG]
- 10.2
- Terminal Type
- M8
- Case Color/material
- Black Plastic Case (ABS)
- IP Rating
- IP65
- Cell Type
- Sodium-ion Rechargeable Cell
- TemperatureSpecifications
- Charge Temp | -10°C to 45°C （14°F to 113°F）
- Discharge Temp
- -30°C to 60°C （-22°F to 140°F）
- Storage Temp
- -20°C to 45°C （-4°F to 113°F）
