Golf Cart Lithium Batteries

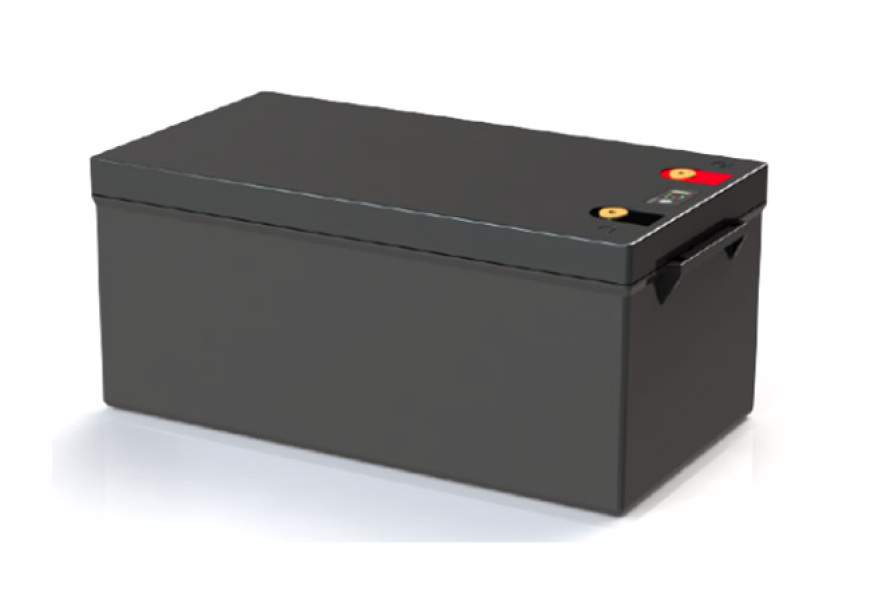

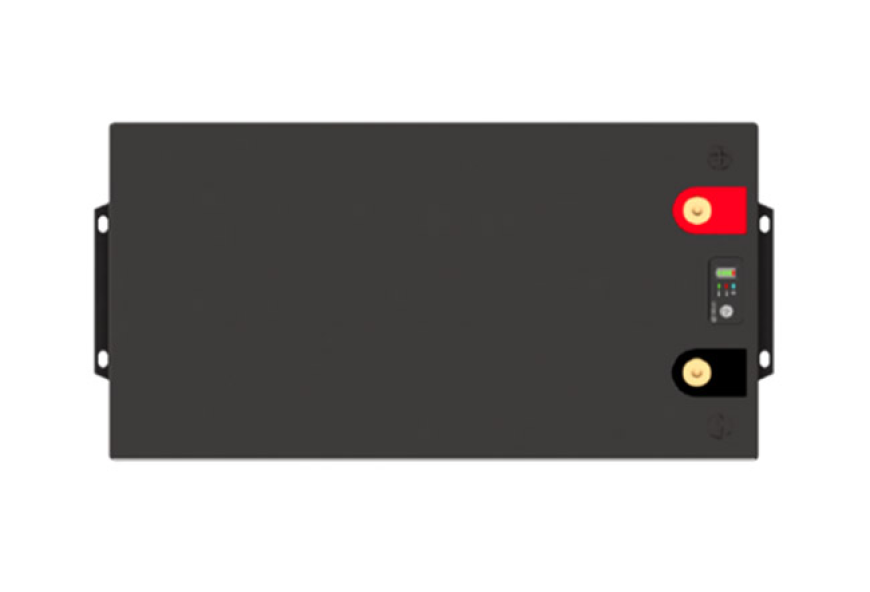

HCG8DS(BCI Group 8D) Series-48V105Ah Smart LiFePO4 Lithium Battery
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- ElectricalSpecifications
- Nominal Voltage | 51.2V | 51.2V
- Nominal Capacity
- 105Ah | 105Ah
- Parallel Connection
- Max.6units | Max.6units
- Serial Connection
- NO | NO
- BMS
- 16S200A | 16S200A
- Bluetooth
- No | Android/IOS
- Heat
- No | No
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 57.6±0.8V | 57.6±0.8V
- Standard Current
- 21A | 21A
- Fast Current
- 52A | 52A
- DischargeSpecifications
- Standard Current | 21A | 21A
- Max. Con. Current
- 100A | 100A
- Peak Current
- 850A(20ms) | 900A(100ms)
- Cut-off Voltage
- 40V | 40V
- MechanicalSpecifications

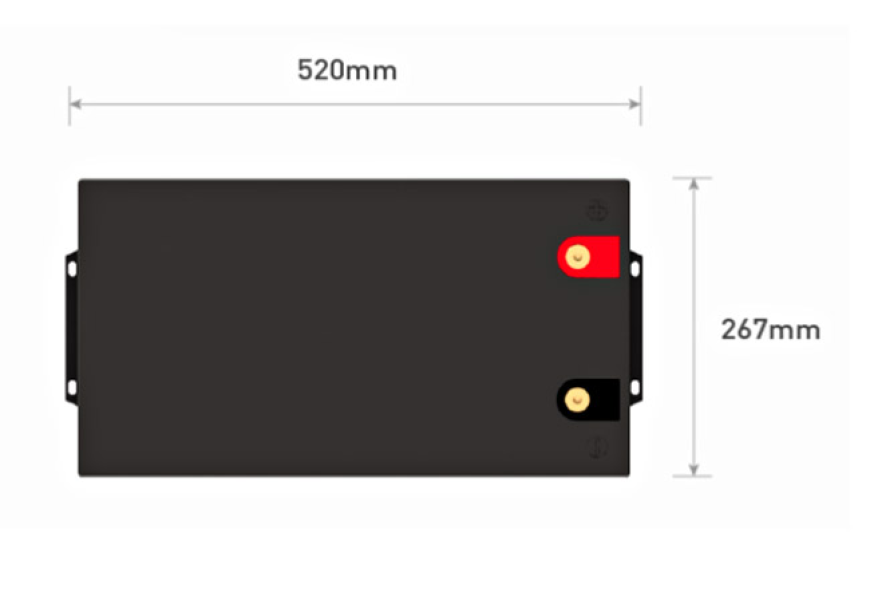

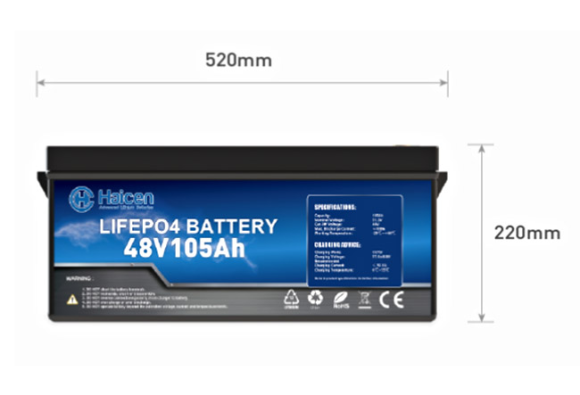

- Dimensions (mm) | 552x110x289mm
- Approx Weight(KG]
- 38 | 38
- Terminal Type
- M8
- Case Color/material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell holder
- Yes
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃ (32℉ to 131℉)
- Discharge Temp
- -20℃ to 60℃ (-4℉ to 140℉)
- Storage Temp
- -5℃ to 45℃ (23℉ to 113℉)
